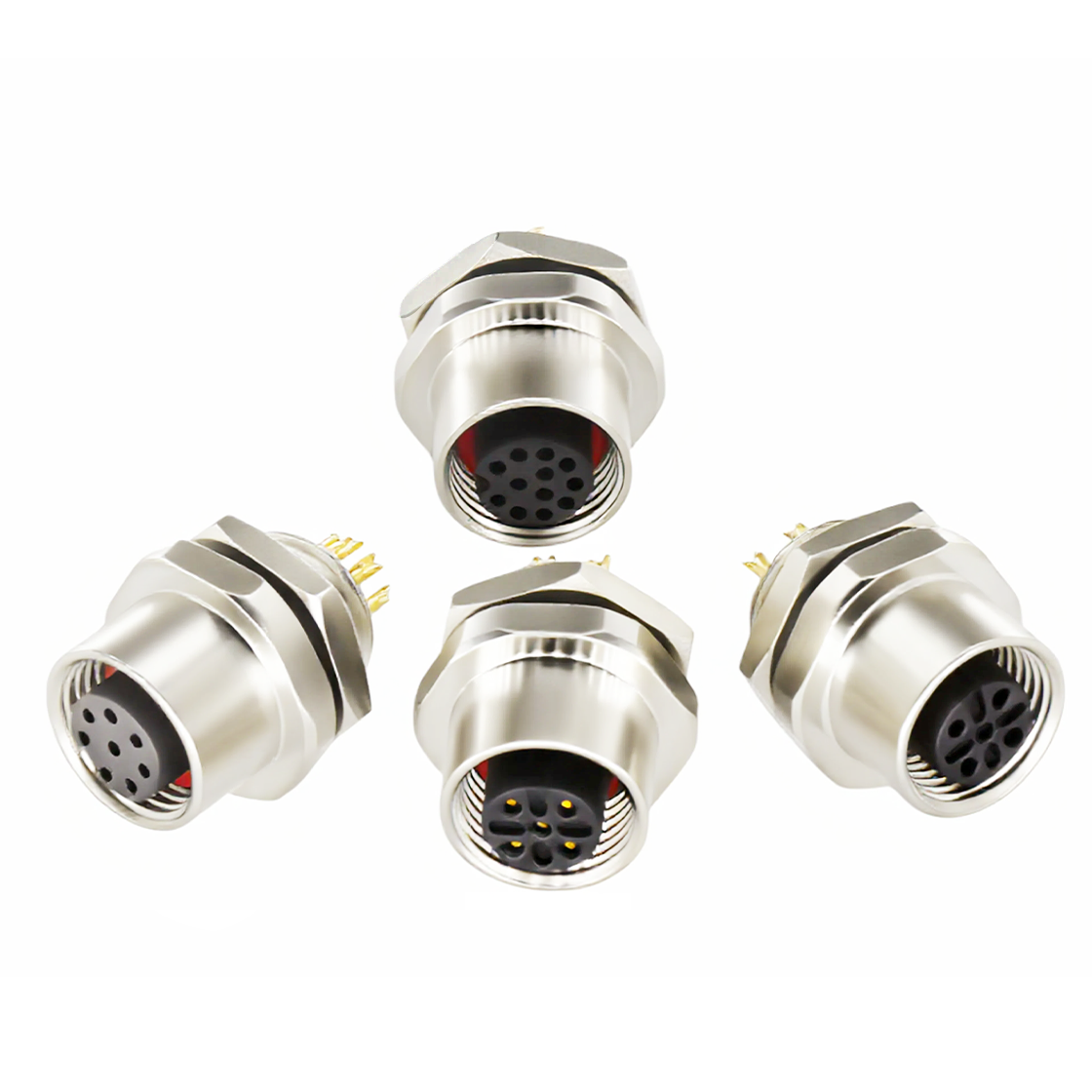

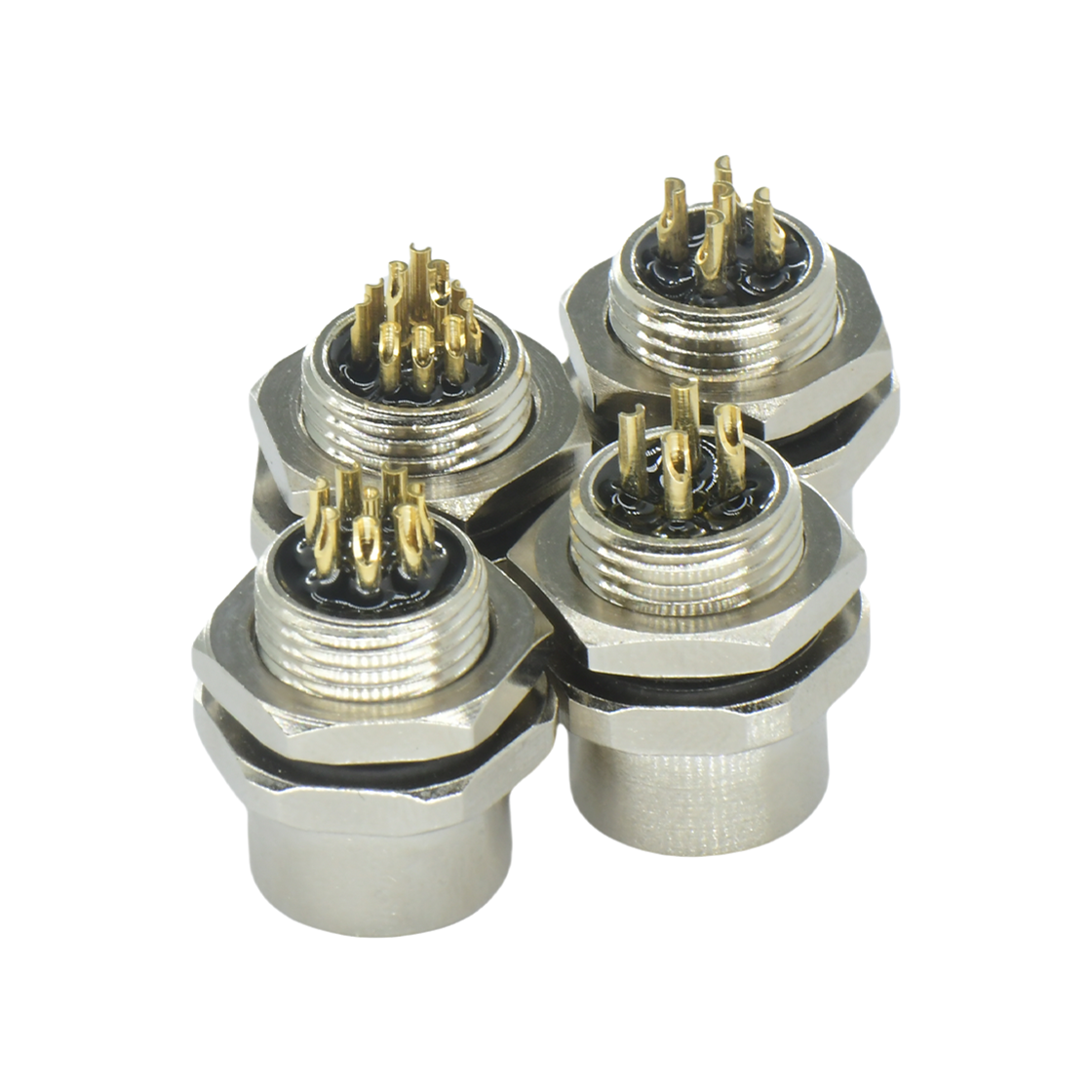

M12 Rear Locking Panel Female Straight, Solder Wire Style, Open Hole M12

1. rear lock panel design with M12 or M16 thread locking mechanism, to ensure a stable connection, prevent vibration or external impact caused by loosening, easy installation, suitable for different thicknesses of equipment panel rear locking installation;
2. IP67 waterproof and dustproof, thread locking and sealing ring design, support for injection molding one-piece molded wire ends, internal potting epoxy resin or PUR/PVC sheath wire, to ensure that waterproof and mechanical strength 3, and assembled, injection molding into the type of plug with the same code core number reasonable interoperable use; can balance the reliability of the fixed interface and the flexibility of on-site maintenance, suitable for industrial automation, new energy, rail transit and other areas of complex needs;
4. brass nickel-plated all-metal shell with PA66 + GF flame retardant plastic high temperature and high humidity, vibration prevention, anti-loosening, suitable for heavy machinery, rail transit and other high vibration scenes;
5. multi-code/core number optional, support A /core optional, support for A/B/D and other coding types, the number of cores covering 2-17 cores, to meet the sensors, actuators, industrial bus (such as Profinet, Ethernet) and other different scenarios of signal transmission needs;
6. quality assurance, through the ISO9001, CE, waterproof and dustproof and other certifications, in line with the RoHS environmental standards, to adapt to the requirements of the global market access.
