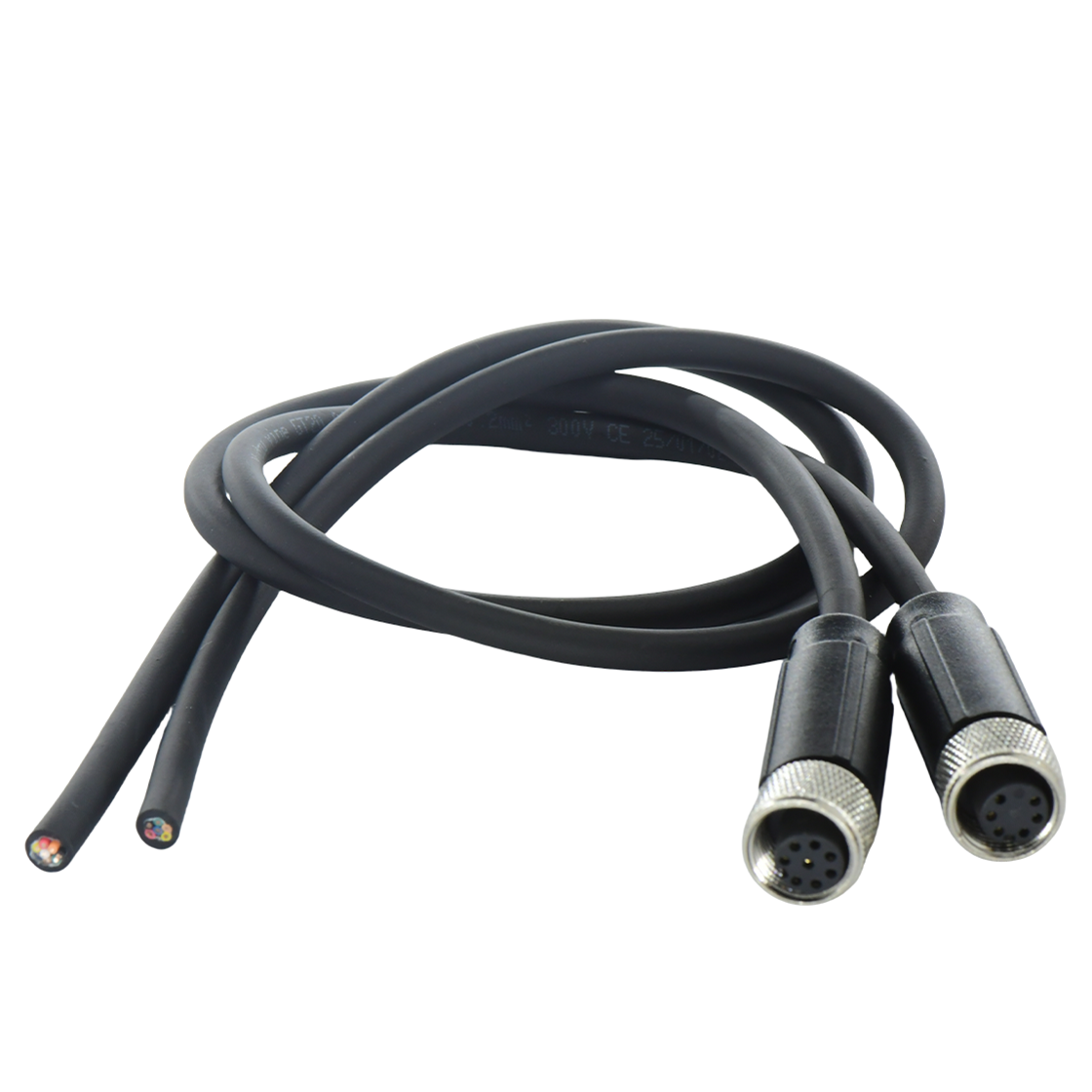

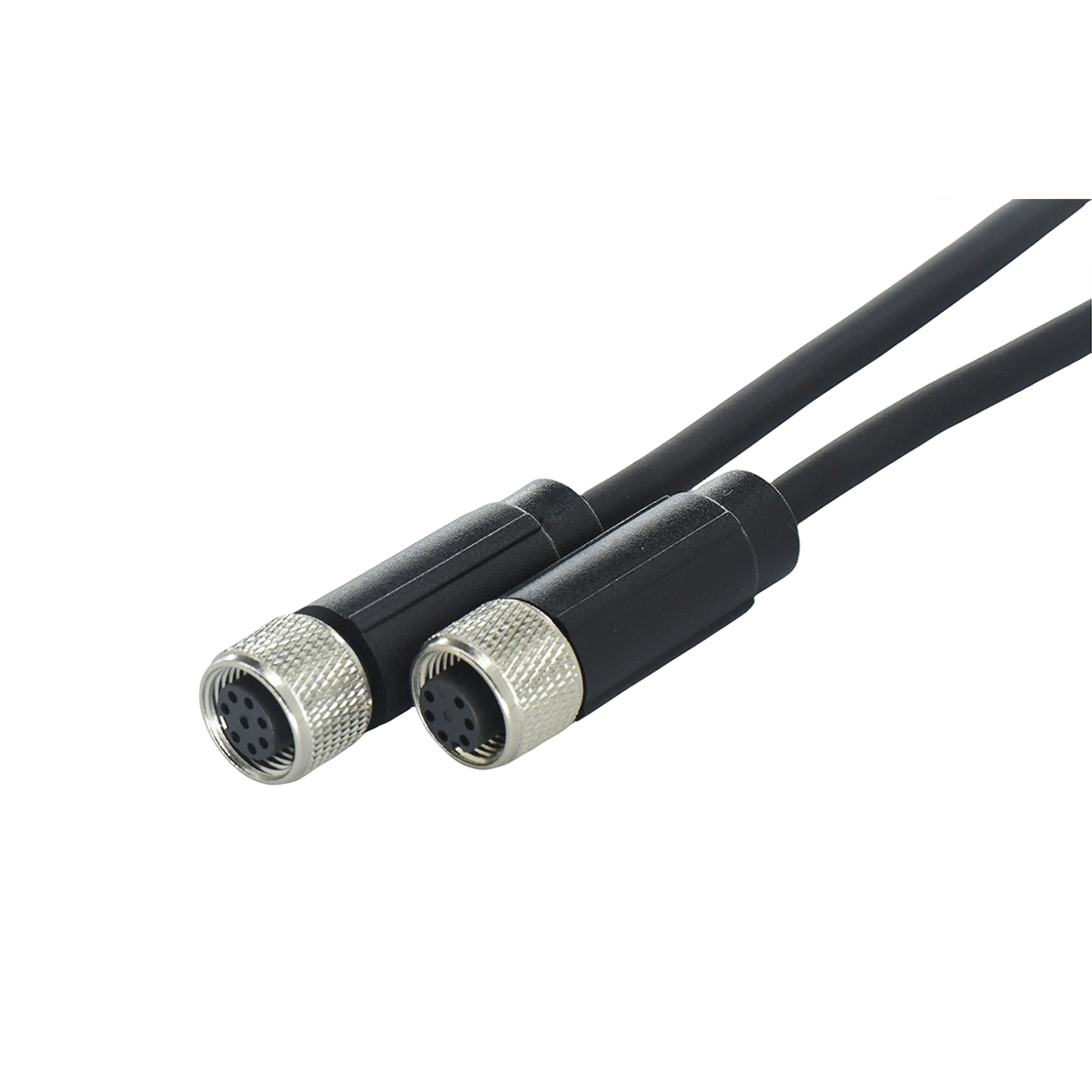

M12 Formed Wire End Female. Soldered Wire, Unshielded + 10.5L Mesh Nut

1. Integrated injection molding process, filled with epoxy resin or PVC, PUR material, to achieve a fully sealed structure, effective resistance to ultraviolet, hydrolysis, oil resistance, especially for high-pressure washing, marine salt spray and other high-demanding environments;
2. Injection molding process to make the cable and connector bonding part of the formation of the stress relief structure, resistance to repeated bending and vibration of the drag chain system scenarios (e.g., industrial robots, rail transportation equipment), the Cable material, length, appearance and special needs to support customization;
3. plug-and-play injection molding package, without the need for on-site wiring, and assembled live plugs, panel sockets with the same code number of cores reasonable interoperable use; can balance the reliability of the fixed interface and the flexibility of on-site maintenance, to adapt to the industrial automation, new energy, rail transit and other areas of the complex needs;
4. brass nickel-plated all-metal shell with PA66 + GF flame retardant Plastic high temperature and high humidity, vibration and anti-loosening, suitable for heavy machinery, rail transportation and other high vibration scenes;
5. optional shielding structure (metal shell or double braided shielding), inhibit electromagnetic interference (EMI), to protect the stability of high-speed communication protocols, such as Ethernet, Profinet, etc.;
6. multi-code/core optional, support for A/B/D and other types of coding, the number of cores covering 2-17 cores, meet the Sensors, actuators, industrial bus (such as Profinet, Ethernet) and other different scenarios of signal transmission needs;
7. quality assurance, through the ISO9001, CE, waterproof and dustproof certificates, in line with the RoHS environmental standards, to adapt to the global market access requirements.
